MAGLOC® Extended Magazine Release for Springfield XD9; XD45 and XDm pistols

Magloc is a registered trademark of Smart Lock Technology Inc. in the United States Patent and Trademark Office since 1997.  Registration number: 75074255

MAGLOC® Extended Magazine Release for Springfield XD9; XD45 and XDm pistols
CAN $ 38.00
Note: All prices on this website are in Canadian $.  One US$ is about 1.3 CAN$ as on November 2020)

 We have four different models:
1. Extended Magazine Release for Springfield XDm pistols (9mm,  .40 S&W and 45ACP caliber. Does not fit XD9 or XD45) black color SKU#1780
2. Extended Magazine Release for Springfield XDm pistols (9mm,  .40 S&W and 45ACP caliber. Does not fit XD9 or XD45) steel color SKU#1779
3. Extended Magazine Release for XD 9mm and .40 S&W caliber (Does not fit XDm; XD45) black color SKU#1460
4. Extended Magazine Release for XD 9mm and .40 S&W caliber (Does not fit XDm; XD45) steel color SKU#1450
5. Extended Magazine Release for XD .45 ACP caliber (Does not fit XD 9mm or XDm) black color SKU#1470
6. Extended Magazine Release for XD .45 ACP caliber (Does not fit XD 9mm or XDm) steel color SKU#1410

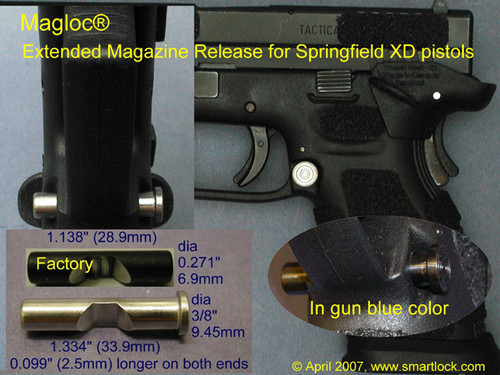

Compare with the factory mag release, this design sticks out 0.099" (2.5mm) from both sides with the contact area of one end enlarged by 87% to speed up magazine release.  For shooters with smaller hands; competitors; duty or self defense that require fast magazine release, this device is a must have.

 Features:

1. Enlarged release button contact area by 87%.  You feel less pressure in releasing the magazine.
2. Release button can be installed with the big end on the left or right hand side of the pistol.
3. Release button extended by the same length on both ends - 0.099" (2.5mm) and fits most holsters.
4. Checkering on both ends are the same as the original to maintain muscle memory.
5. Made of steel (same as the original magazine release) and can be gun blued by most gun blue chemical.

Specification:

1. Fits all Springfield XD standard; compact in 9mm or .40 S&W cal pistols. (Separate one for XD .45 ACP pistol and XDm)
2. Total weight:
        9mm and .40 S&W - 0.33 oz (9.4 gram)
        .45 ACP - 0.32 oz (9.1 gram)
3. Length of the original mag release: 1.138 “(28.9mm).
    Length of this mag release: 1.334" (33.9 mm).
4.  Original diameter: 0.271" (6.9mm)
     Big end of this mag release: 3/8" 9.45mm)

Installation:
Note: If you are not sure of the installation, please get the help of a qualified gunsmith. Wear eye protection and make sure the gun is not loaded before starting.

Tools required:
1.  One 1/16" (1.5mm) drive punch.  First mark off a length of 0.39" (10mm) to prevent over driven.
2.  One light weight hammer.

The Installation:
1. Separate the slide from the frame.
2. Use the drive punch to drive out 0.39" (10mm) length of the " Magazine Catch Pin" from the right hand side as shown on (Photo 1).  Do not over drive and release the whole "Magazine Catch" as reinstalling it is a major headache.
3.  Photo 2 shows the "Magazine Catch" in its correct partially released stage.
4.  With one finger pressing the top of the "Magazine Catch" push the magazine release out from the frame as shown on (Photo 3).
5.  With one finger pressing the top of the "Magazine Catch" push the small end of the extended magazine release into the frame as shown on (Photo 4).  This installation can be done from the right or the left hand side of the frame as the big end can be installed on either side.
6.  With one finger pressing the top of the "Magazine Catch" to its original position, use the light weight hammer to tap the "Magazine Catch Pin" back into its original position (Note: use the drive pin to make the final adjustment).

 Important: After installation, holster test and test fire your pistol in various shooting positions and making sure that your hands would not accidental activate the extended magazine release.

Note: This item with bubble envelope has total thickness less than 2 cm and will be shipped by letter mail at $3.50 within no insurance nor tracking number. Shipping with tracking and $100 insurance is $20. Please email us if you need this service.
**We accept Visa, MasterCard and American Express via  "MyVirtualMerchant" (Costco -  Elavon Merchant Service). Bank Deposit for purchase within Canada only.  Please pay by EMT to: vancouvergunshop@hotmail.com no security answer is required.
